Light rail costs too much, does too little

The Clark County (that’s Vancouver) Building Industry Association asked the Antiplanner to look at the project’s draft environmental impact statement that came out in May. The entire DEIS and supplemental documents total some 5,000 pages. Because the Project did not post all of the supplemental documents on line, and what it did post is in numerous separate files, the Antiplanner’s faithful ally, Jim Karlock, posted the entire DEIS and technical reports in two documents.

The first thing the Clark BIA asked me was, “Why is this expected to cost $4 billion? The Washington Department of Transportation recently built a new Tacoma Narrows Bridge, which is longer than the Columbia crossing, and it cost less than $1 billion.”

It turns out that the Columbia Crossing people snuck two other projects in the bridge plans. The DEIS considers two alternatives for the bridge itself: one would build two replacement bridges with a total of 12 lanes of traffic (the current bridges have only six). The other would build a supplemental bridge that, with the existing bridges, would provide a total of eight lanes. The replacement bridges are estimated to cost between $1.2 and $1.4 billion (about the same cost per lane mile as the new Tacoma Narrows Bridge) while the supplemental bridges would cost $1.0 to $1.2 billion.

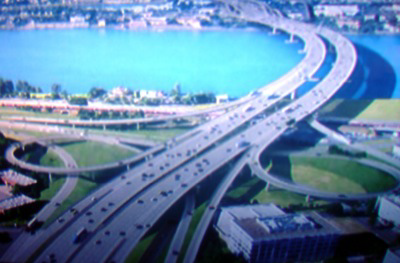

One concept for the proposed replacement bridge. To minimize traffic disruptions, the replacement must curve around the site of the existing bridge.

Flickr illustration posted by Dale Chumbley.

All of the alternatives in the DEIS (except the no-build alternative) also provide for a so-called “high-capacity transit” line into Vancouver, either light rail or bus-rapid transit. The bridge replacement alternatives would actually build three different bridges, two for highway traffic and one for transit. The supplemental bridge alternative would put both transit and some of the highway traffic on the new bridge. More than just a river crossing, the transit project would send the transit lines well into Vancouver, Washington at a cost of $0.6 to $1.1 billion.

The third project is to add more lanes to I-5 for several miles north and south of the bridge and to completely rebuild five highway interchanges, three in Vancouver and two on the Oregon side of the river. These additions are included in all alternatives except no build. These lanes and interchanges are expected to cost about $1.5 billion.

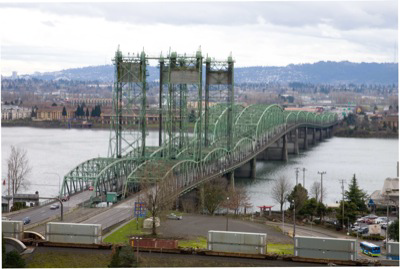

One reason for replacing the bridge.

Flickr photo by Dale Chumbley.

The DEIS did not designate a preferred alternative. But reading between the lines, it seems likely that the project will pick the replacement bridge with light rail. The replacement bridge costs only a little more than the supplemental bridge, has much more capacity, and removes impediments to river traffic. Meanwhile, TriMet wasted a bunch of money building light rail almost to the foot of the bridge, and is not going to settle for bus-rapid transit the rest of the way into Vancouver.

No one will be surprised to learn that the Antiplanner is not enthused about spending another billion on light rail. My detailed comments make the following points.

First, a 12-lane replacement bridge is overkill. Given that I-5 north and south of the bridge has only six lanes, six of the bridge lanes are supposed to be “auxiliary lanes,” but two should be sufficient. Add two more for future expansion of I-5 (over the dead bodies of the current Oregon Transportation Commission, which has a policy of no new highway capacity in Oregon), and you need no more than 10 lanes. If 12 lanes costs $1.2 billion, a 10-lane bridge will cost about $1.0 billion.

Second, the DEIS offers no justification for new auxiliary lanes and rebuilt highway interchanges north and south of the bridge. Since some of the auxiliary lanes even disappear between off ramps, which always adds to congestion, drivers would actually be better off without the lanes.

Third, light rail is a huge waste, and so are exclusive bus-rapid transit lanes. It is worth noting that planners admit that light rail would have lower capacities than bus-rapid transit, but they exaggerate the capacity of light rail. Portland’s light-rail bottleneck will be the Steel Bridge, which can carry only 30 trains an hour. Since the bridge will serve four different light-rail lines, only about eight or 10 trains will be able to go to Vancouver.

Planners also crippled the bus-rapid transit alternative by assuming that all buses using the exclusive bus lanes would terminate at the Expo Center light-rail station on the Oregon side of the river. Since transit riders find changing buses or trains to be “onerous,” planners said this would greatly reduce bus ridership. So why didn’t they simply allow the buses to run all the way into Portland? Probably because doing so would make the light-rail alternative look bad.

The Columbia River Bridge with Mt. Hood in the background.

Flickr photo by Devlyn.

Despite the 12-lane bridge and high-capacity transit, planners project that spending $4 billion won’t completely relieve congestion. Under the no-build alternative, bridge traffic will slow to less than 30 miles per hour for 15 hours a day. The replacement bridge alternative reduces this to 5.5 hours. That’s an improvement, but still a lot of time (and fuel) is being wasted.

Based on these observations, the Antiplanner submitted a new alternative, which the Clark BIA is calling the Affordable Alternative. This alternative calls for building a new 10-lane bridge across the river and tolling the bridge using congestion pricing so that it never becomes congested. The tolls will also pay for the bridge so no new taxes will be needed.

There is no need for a special bridge just for so-called high-capacity transit. Instead, buses will share the new bridge with cars and trucks. Since the bridge will never get congested, the buses will be able to transport more people at fast speeds than light rail.

Is there a need for new auxiliary lanes and highway interchanges north and south of the bridge? Other than some vague safety concerns, the DEIS doesn’t offer any reason for this $1.5 billion subproject. The Affordable Alternative would do these things only if they are really needed and if surplus bridge tolls are available to build them.

As shown in this view from the 1920s, there was only one bridge from 1913 to 1958. And look — Vancouver had a trolley car in those days, which the city replaced with buses in 1927. If TriMet has its way, Vancouver will have one again.

The Antiplanner’s comments show that the Affordable Alternative will not only save money, it will provide more transit capacity, less congestion, more energy savings, and less air pollution and greenhouse gas emissions than any of the alternatives in the DEIS.

Comments on the Columbia Crossing DEIS are due on July 1. Even if you say nothing other than, “I support the Clark BIA Affordable Alternative” (presuming that you do), you can have an influence on the outcome.
